Overview

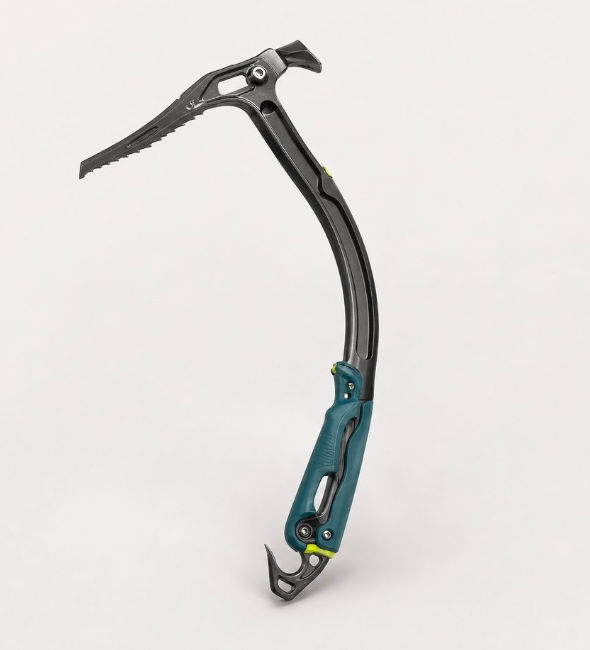

Pulse Arc 49

Keep the swing. Take the sting out of the hand.

/ INTENDED USER

High-volume waterfall climbers who experience hand shock and forearm fatigue

/ SPECIFIC PROBLEM BEING SOLVED

Repeated strikes transmit cold, high-frequency shock through rigid handles while thick damping can erase placement feedback.

/ CORE DESIGN IDEA

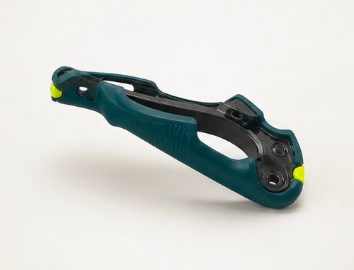

A continuous forged spine carries load while a replaceable elastomer-isolated grip cradle targets vibration only at the hand interface.

/ KEY FEATURES

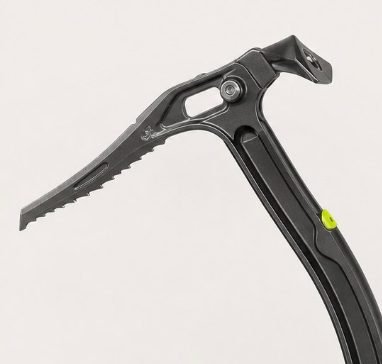

Continuous metal spine; floating lower grip shell; three durometer inserts; upper match rest; modular pick; micro-hammer; drain channels.

/ SUGGESTED MATERIALS

Forged 7075 aluminum spine; heat-treated chromoly pick; TPU/elastomer isolators; glass-filled nylon grip shells; stainless hardware.

/ APPROXIMATE DIMENSIONS OR FIT

49 cm; deeply offset geometry; grip circumferences 100/108/116 mm.

/ WEIGHT TARGET

Target 605 g.

/ COLOR PALETTE WITH VALUES

Fir Black #0C2623; Storm Teal #1E5861; Signal Sulfur #D7FF3F; Oxide Rose #B55245.

/ COLOR, MATERIAL AND FINISH RATIONALE

The dark spine reads compact and serious; teal reveals the floating cradle; sulfur marks insert access; oxide denotes the warmest insert.

Intended use

Details are being verified before publication.

Limitations

Details are being verified before publication.

Verified specifications

Details are being verified before publication.

Care

Details are being verified before publication.

Shipping and returns

Shipping details will be published before this product is available.

Warranty

Warranty terms are being established and will be published before launch.

U 8/10 / C 9/10

A single alpine tool for the long approach, the steep step and the anchor that follows.

Intended user: Alpinists moving between glacier travel, steep snow and short ice steps.
Problem being solved: Hybrid routes force a choice between comfortable walking axes and efficient technical tools.
Core design idea: A restrained 55 cm curve and modular Type 2-style head support adze, hammer and pick changes without changing the core tool.
Key features: Interchangeable adze/hammer; replaceable pick; captive hardware; upper index texture; tool-free sliding handrest; steel spike.
Suggested materials: 7075-T6 aluminum; forged chromoly steel; glass-filled nylon; TPU grip.
Approximate dimensions or fit: 55 cm; moderate curve; approximately 185 mm head.
Weight target: Target 430 g.
Color palette: Storm Teal #1E5861; Deep Basalt #171A1F; Signal Sulfur #D7FF3F.
Color, material and finish rationale: A dark head visually anchors swing mass; sulfur lock witnesses make incomplete assembly easier to spot.

U 10/10 / C 6/10

A packable axe concept that puts the joint in plain sight and makes redundancy the design.

Intended user: Ski racers and fastpackers who need an axe inside compact transport limits.
Problem being solved: External axe carry snags in lifts and travel, but telescoping shafts introduce dangerous joints.
Core design idea: A long overlapping keyed scarf joint with two independent captive pins prioritizes redundancy over compactness.
Key features: Two transport sections; keyed anti-rotation overlap; dual pins; lock witness; conventional head; sliding handrest; replaceable spike.
Suggested materials: 7075 aluminum; titanium head; chromoly pick/spike; glass-filled nylon lock sleeve.
Approximate dimensions or fit: 55 cm assembled; approximately 34 cm longest packed section.
Weight target: Target 380 g.
Color palette: Storm Teal #1E5861; Deep Basalt #171A1F; Signal Sulfur #D7FF3F.
Color, material and finish rationale: The black joint is deliberately visible rather than disguised; sulfur reveals incomplete locking.

U 9/10 / C 8/10

Wear the contingency before you need to sleep in it.

Intended user: Solo fastpackers and guides who need carried rainwear plus contingency shelter.
Problem being solved: Emergency bivies are single-purpose and ponchos rarely control pack fit, face ventilation or shelter conversion.
Core design idea: A shaped poncho opens to one rectangular textile whose perimeter hardware forms a vented bivy or small tarp.
Key features: Pack-volume hood; side snaps and belt; bivy perimeter zip; mesh face vent with short stay; reinforced tarp corners.
Suggested materials: 40D recycled HT nylon; waterproof molded zip; mesh; HDPE brim stay; reflective witness strips.
Approximate dimensions or fit: Flat textile approximately 235 × 150 cm; pack 22 × 12 cm.
Weight target: Target 470 g.
Color palette: Signal Sulfur #D7FF3F; Oxide Rose #B55245; Deep Basalt #171A1F; Storm Teal #1E5861.
Color, material and finish rationale: Rescue sulfur dominates; oxide identifies shoulder stress; black ground edge makes daily poncho use less precious.
